POS-6000-i

Features

.Energy/Performance balance CPU Selectable (Core i3/i5/i7)
.DDR3 RAM module (up to 16G)
.15 inch Full-Flat LCD monitor
.Touch Screen: 5 Wire Resistive or Projective Capacitive (Multi-Touch support)
.Smart Fan Cooling System
.Optional Rear Mount VFD customer display (700 cd/m2 20 x 2)
.Secondary Display (10.4 inch, touchscreen type available)
.Modular MSR and i-Button
.Gigabit LAN Port
.Versatile I/O support: USB 3.0 / USB 2.0 / RS-232 / RJ-11 / RJ-45…etc.
.Internal Cable Routing Base Design Ideal for Small Workplace Operation
.Hidden Power Adapter Design

SKU: KDS003-1 Category: Tag:

Description

Description

The POS-6000 is a 15 inch Full-Flat Touch Screen POS terminal suit for variety of market segments. With the 15 inch Full-Flat LCD touch screen, POS-6000 provides better visual comfort for the user.

POS-6000 consists of new up-to-date processor options, ranging from energy-saving Quad-Core Celeron to Performance/energy balanced Core-i CPUs. This enable POS-6000 operate with less noise, and
the Energy/Performace balanced model (POS-6000-i) is especially suitable for the location that performance and reliability is often taken into consideration.

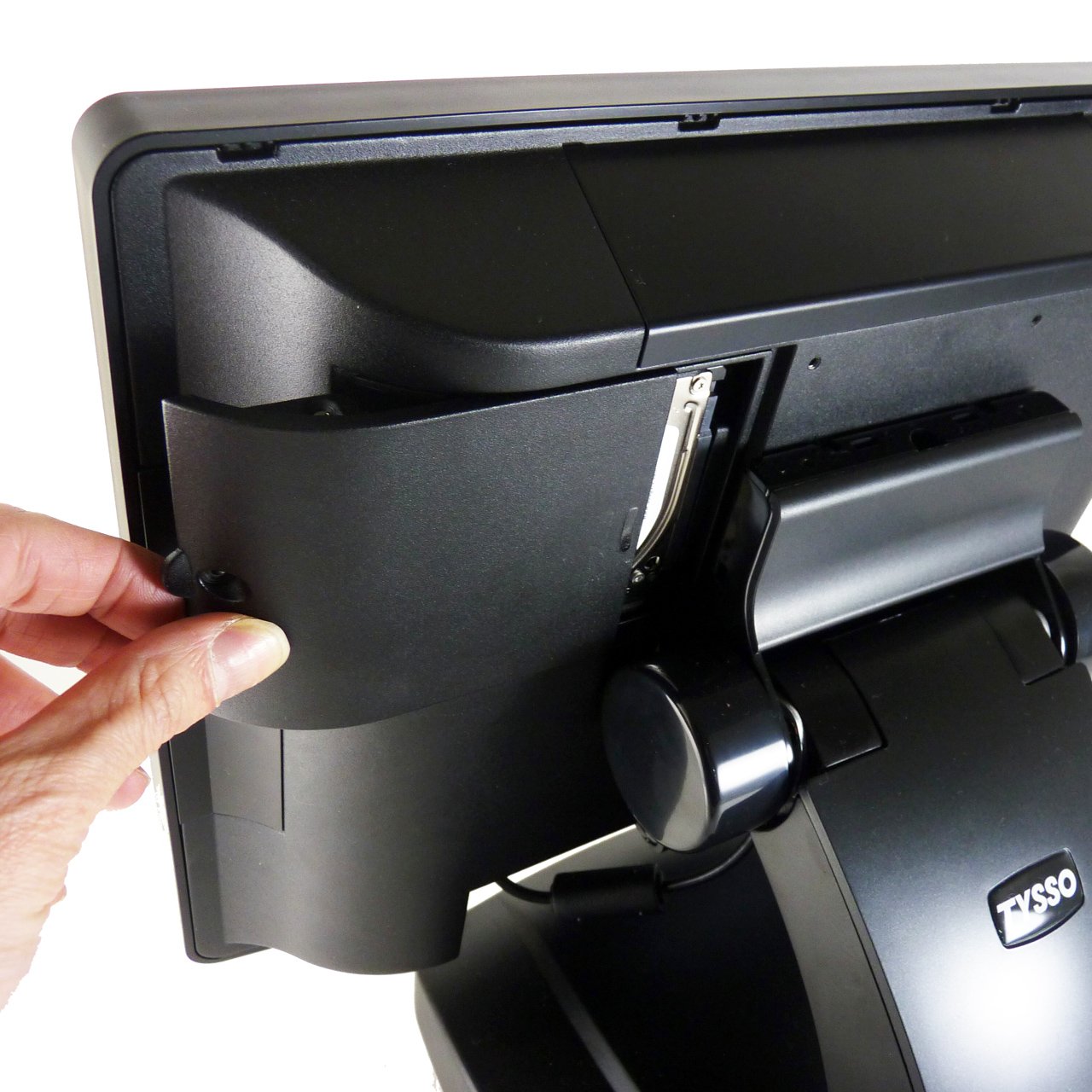

The new designed i-button and magnetic stripe card reader (MSR) module can integrate with the POS-6000 seamlessly into the housing and easy to detach. This helps user to install and replace without effort.

Multi-Functional, space-saving, reliability and efficient; POS-6000 is your ideal choice of universal Point of Sale system.

Specification

Model POS-6000-i
CPU Intel® Core™ i7 3630QM , 2.4GHz (6M Cache, up to 3.40 GHz)
Intel® Core™ i5 3320M , 2.6GHz (3M Cache, up to 3.30 GHz)
Intel® Core™ i3 3120M , 2.5GHz (3M Cache, 2.50 GHz)
System Memory 2 x 204 pin DDR3 SO-DIMM Socket 1333MHz, up to 16GB
Graphics Intel HD Graphics 4000
OS Support POS Ready 2009, POS Ready 7, XP Pro, Vista, Windows 7, Linux
HDD Storage 1 x 2.5″ SATA
Compact Flash 1 x CFast Slot for SATA-I/SATA-II
Display TFT LCD, 1024 x 768 Pixel
Size 15″
Brightness 250 nits
Tilt Angle 15° ~ 80° (up to 90° possible)
Power Input +12VDC 90W,4-pin Connector with Lock
(Power Adaptor: 100~240VAC, 50/60Hz)
Weight 6.7 Kg
Dimension (mm) 91.2(W) x 352.3(H) x 245.0(D)
Compliance FCC / CE / WEEE / RoHS
Interface 4x COM ( 3 x DB9 , 1x RJ45 with power output, 5/12V selectable )
2 x USB3.0 (External)
4 x USB2.0 (External)
3 x USB 2.0 (Internal, reserved for touch screen, Wi-Fi, and MSR)
1 x PS/2 mix (mini-DIN-6) for PS/2 Keyboard/Mouse
1 x RJ-45, 10/100 Base-T
1 x DB-15, VGA Port
1 x +12VDC Jack for 2nd LCD Display
1 x RJ-11, 12/24 VDC Selectable
1 x Line Out, 1 x MIC In, 1 x Internal Speaker 2W

Additional information

Weight 20 kg
Dimensions 20 × 15 × 10 cm
size

small, large
