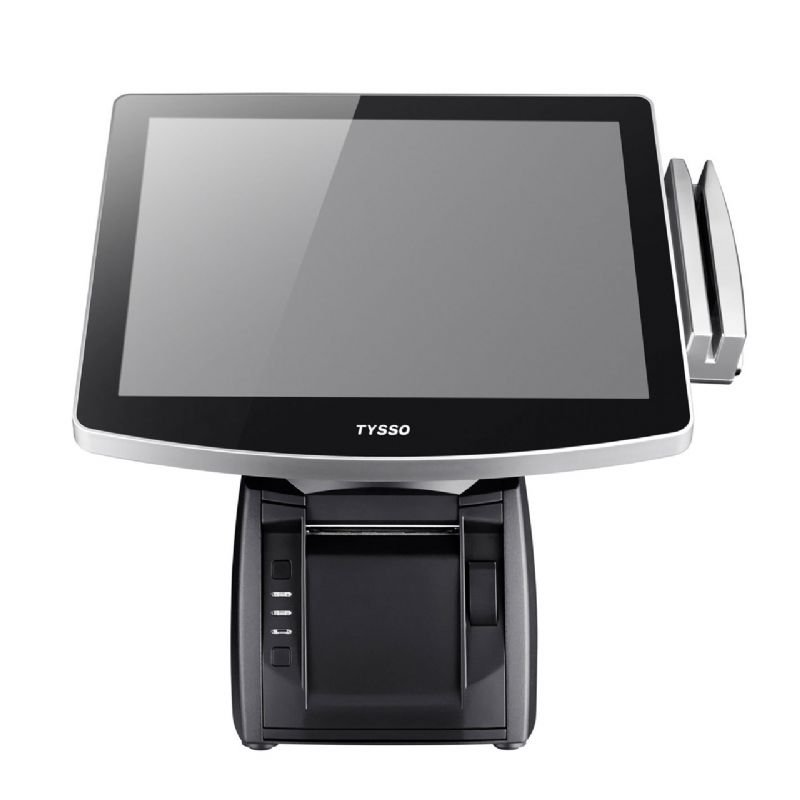

POP-650 Fanless POS System


.Bay Trail Celeron J1900 (2.0 GHz)
.DDR3L RAM module (1~8G)
.15 inch Full-Flat LCD monitor
.Touch Screen: 5 Wire Resistive or Projective Capacitive (Multi-Touch support)
.Fanless Cooling System
.Embedded 250 mm/sec High-Speed thermal receipt printer
.Magnetic-Lock Base Rear Cover
.Modular Rear Mount customer display
.Optional Secondary Display (10.4 inch, touchscreen type available)
.Modular MSR and i-Button
.Gigabit LAN Port
.Versatile I/O support: USB 2.0 / RS-232 / RJ-11 / RJ-45…etc.
.Fully-Functional with Space-saving Design to fit into small space

SKU: KDS001-1 Category: Tag:



Model No. POP-650-B
CPU Intel® Bay Trail-D Platform, Celeron® Processor J1900
(2.0 GHz, 2M Cache)
System Memory 1 x DDR3L SO-DIMM 1333MHz, up to 8 GB
Graphic Memory Intel® HD Graphics
Operating System POS Ready 7, Linux, Windows 7
Type 15″ Full Flat LCD Monitor
Brightness 300 nits
Resolution 1024 x 768 Pixel
Touch Screen 5 Wire Resistive Type or Projective Capacitive
Tilt Angle 35 ~ 90 Degree
HDD 1 x 2.5″ SATA
Auxiliary Storage 1 x CFast Slot for SATA I / SATA II
Serial 4 x COM (DB9, with COM 1/COM 2 power output, +5VDC/+12VDC, selectable by Jumper)
USB 1 x USB 3.0 (External),
4 x USB 2.0 (External, 2 x bottom/ 2 x side)
PS/2 1 x PS/2 (for PS/2 Keyboard/Mouse)
LAN 1 x RJ-45, Giga LAN Support
VGA 1 x DB-15, Female
DC Out 1 x 12VDC Jack for Customer Display or 2nd Display,
1 x 24VDC 3-pin Connector with Lock for Printer
Cash Drawer 1 x RJ-11, +12/+24 VDC
Audio 1 x Line Out, 1 x MIC In, 1 x Internal Speaker 2W
Power Input 12VDC 180W, 4-pin Connector with Lock
(External Adaptor: 100~240 VAC, 50/60HZ)
Power Input (Printer) +24VDC/2.5A, 3-pin Connector with Lock (for Printer)
Color Silver, Black
Compliance FCC / CE / WEEE / RoHS
Weight 8.5 Kg
Dimension (mm) 391(W) x 266(D) x 395(H)
Operating Temperature 0°C~40°C
Operating Humidity 20%~80% RH non-condensing
Storage Temperature -20°C~55°C
Storage Humidity 20%~85% RH non-condensing

Additional information

Weight 5 kg
Dimensions 20 × 10 × 5 cm
