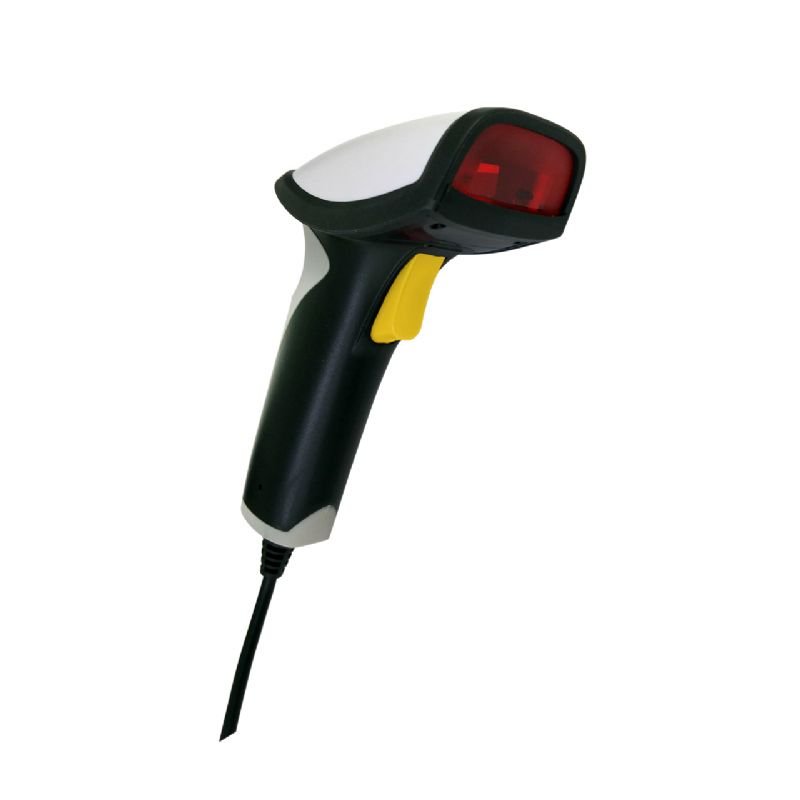

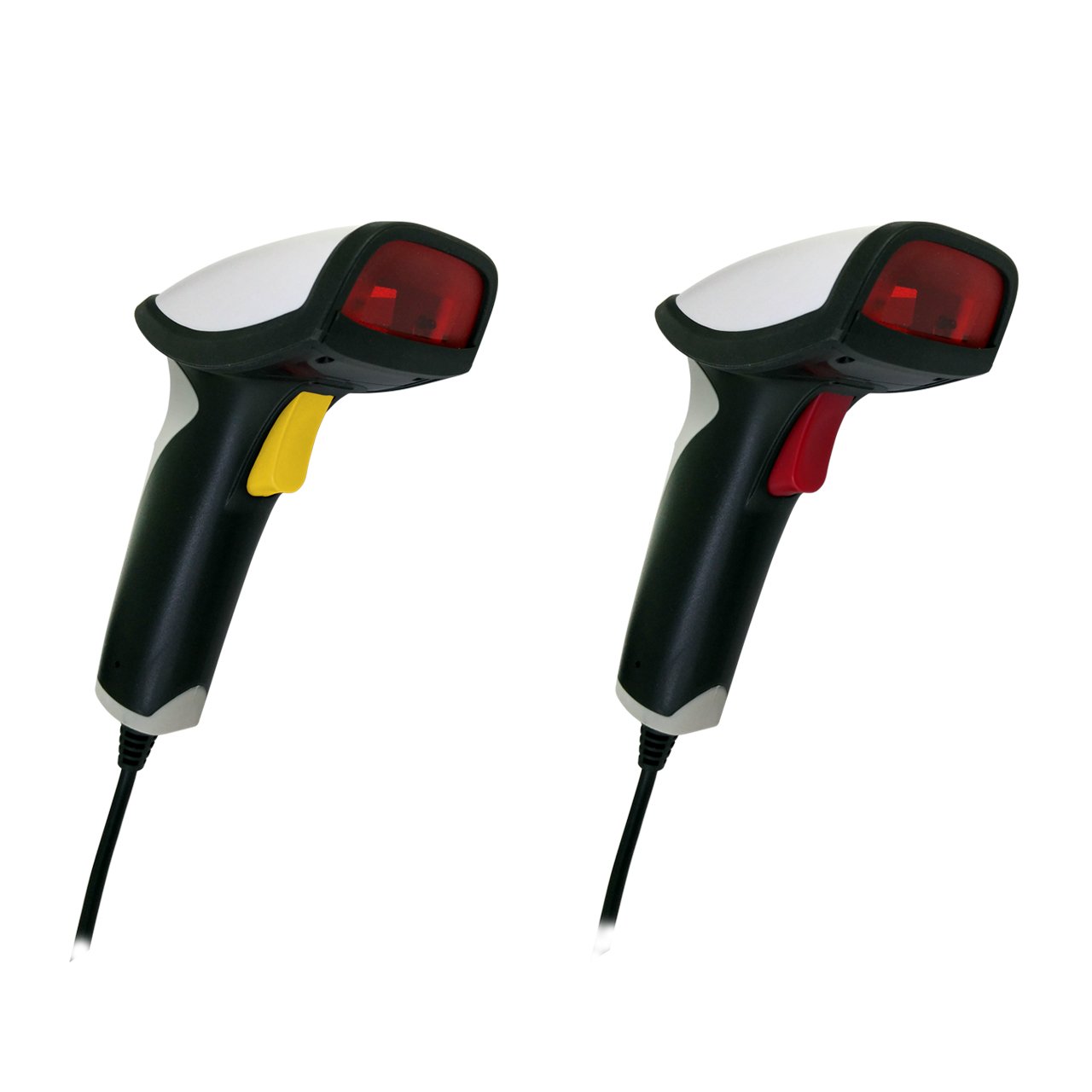

Laser Barcode Scanner


.High-Sensitivity Laser Scan Engine
.Scan Speed: 200 scan/sec(GS-6000) / 100 scan/sec(GS-6500)
.Depth of Field: 3~55 cm(max)(GS-6000) / 3~50 cm(max)(GS-6500)
.32-bit Decoding Technology
.Ergonomic Design and Durable Housing
.Interface: RS-232, USB, Keyboard Wedge
.Exchangeable cable (interface)

SKU: KDS003 Category: Tags: , ,


Model GS-6000 GS-6500
Scan Rate 200 scans/sec 100 scans/sec
Sensor Type Laser diode Laser diode
Wavelength 650nm±10nm 650nm
Depth of Field 3~55 cm max 3~50 cm max
Contrast Ratio >30% >30%
Scan Patten Single scan line Single scan line
Resolution 0.1mm (4 mil) max. 0.1mm (4 mil) max.
System Interface Keyboard Wedge / RS-232/ USB (USB-HID, USB-UART, HID-POS) Keyboard Wedge / RS-232 / USB
Indicator Buzzer and LED illumination Buzzer and LED illumination
Readable Bar Code Symbologies EAN-8/JAN-8, EAN-13/JAN-13, UPC-E, Code-128, CODE-93, RSS-Standard, RSS-Limited, RSS-Expanded, CODE-39, Inter-Leaved 2/5, Inter-Standard 2/5, Matrix 2/5, Industrial 2/5, China-Post, MSI, MSI-PLESSEY, CODE-BAR, CODE-11 EAN-8, EAN-13, UPC-A, UPC-E, CODE-39, CODE-128, EAN-128, Codabar, Industrial 2/5, Interleave 2/5, Matrix 2/5, MSI, GS1
Auto Scan No Yes
Power Input 5VDC ±5% 5VDC ±5%
Operation Mode 50 mA(100 mA max) 85 mA(120mA max)
Power 5V DC via cable 5V DC via cable
Cable Length 180 cm, exchangeable 180 cm, exchangeable
Ambient Light Daylight, 4800 Lux Daylight, 5000 Lux
Operating Temperature -10°C~50°C 0°C~45°C
Storage Temperature -20°C~ 60°C -20°C~ 60°C
Storage Humidity 5% ~ 95% RH (non-condensing) 5% -85% RH, non-condensing

Additional information

Weight 20 kg
Dimensions 20 × 15 × 10 cm

small, large
